• Transmission：Soft Shaft
• Portable Harvester Type：Combine
• Certification：ISO9001:2008, CE
• Color：Red
• Condition：New
• Application Field：Agriculture, Farming
• Warranty：1 Year
• Model：4yz-4wa
• Engine Power：200HP
• Cutting Width (mm)：2300mm
• Harvester Rows：4 Rows
• Working Efficiency：0.33~0.67hm/H
• Total Loss Rate：<4%
• Service Life：8-10 Years
• Delivery Packing：Water Proof Film Wooden Case
• Container Model：40hq*1
• Delivery Port：Qingdao
• Trademark：CHMC ZHONGLIAN
• Transport Package：40 FT Hq Container
• Specification：6855*2580*3230mm
• Origin：China
• HS Code：8433510001

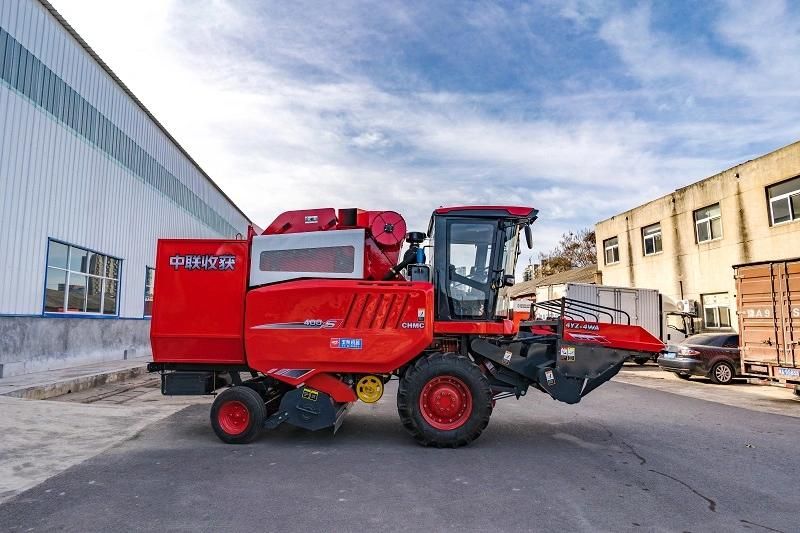

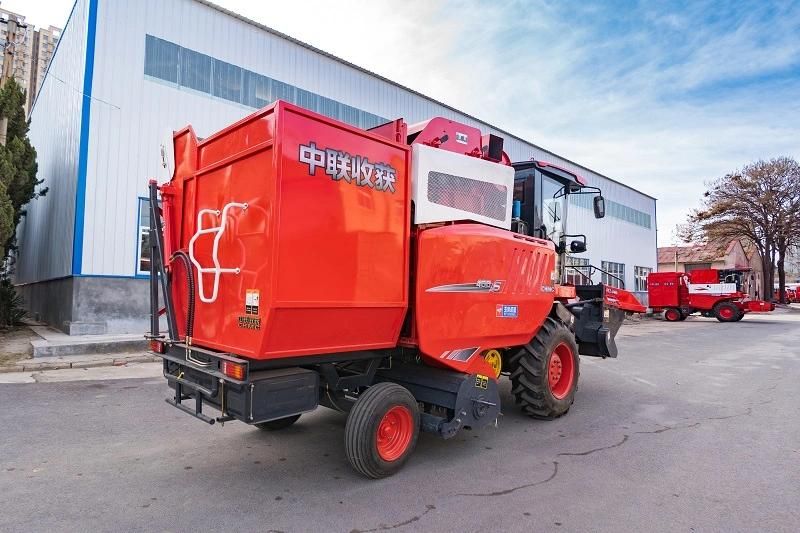

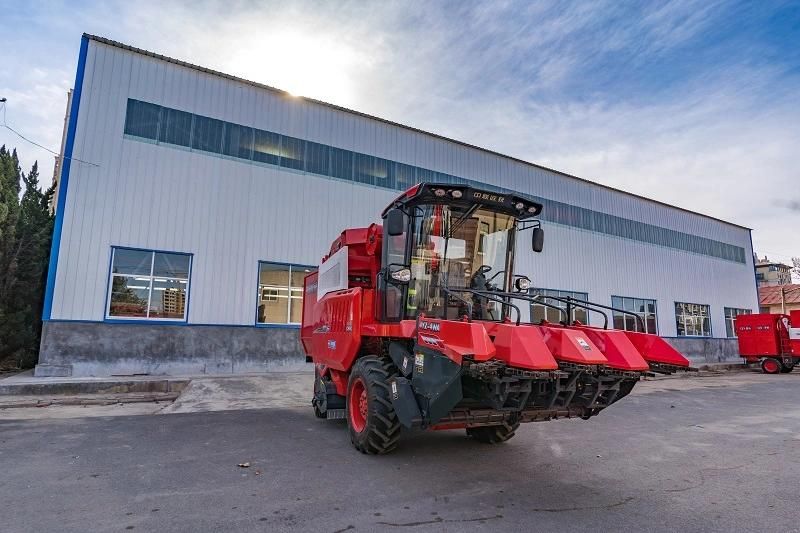

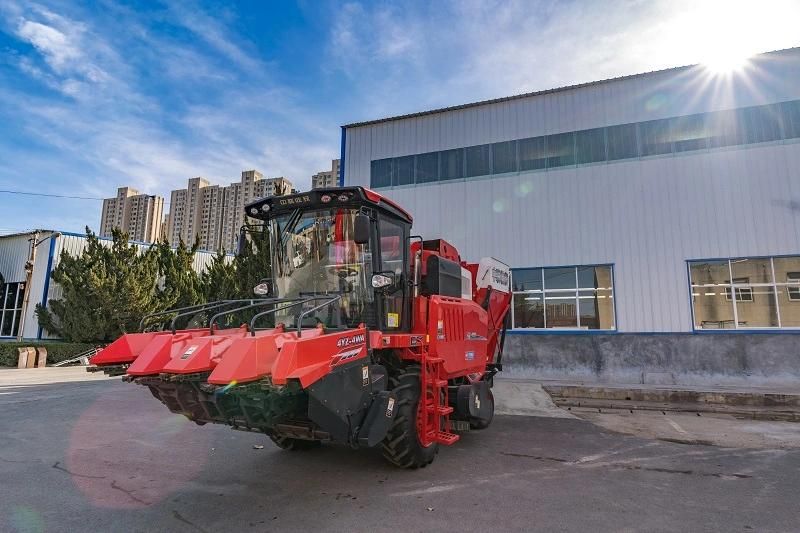

Used for maize and corn harvesting farm use maize and corn combine harvester

Technical parameters:

Model

4YZ-4WA

Type

Wheel type

Wheel

2 drive wheel + 2 direction wheel

Function

Picker + peeling, produce "corn cob"

Model of engine

YC4A165-T300

Engine manufactory

YUCHAI

Power

200 hp

Engine speed

2300-2400 r/min

Harvester rows

4 rows

Cutting width

2300mm

Harvest efficiency

0.33~0.66 hm²/h

Total loss rate

≤4%

Breakage rate

≤1.0%

Impurity rate

≤1.5%

Peeling rate

≥90%

Oil consumption

≤20kg/hm²

Minimum corn cob height from field

300mm

Granary volume

2200L

NW

6020 Kgs

Size

Harvesting Process:

1.Using a straw crushing and returning device, can completely crush the corn straw and reduce the stubble height.

2.Peeling device with special design, adopt soft peeling technology,5 sets peeling device,20 pcs rollers, metal and rubber rollers blended, this design makes peeling cleaner, reduces the rate of seed damage&loss.

3.Flexible harvesting ways,suitable for different row space and different planting structure, can harvest even not in rows.

4.Assembling shake sieve and seed recycling bins, can collect the fallen corn seed, reduce loss rate.

5.Short machine body, short front-back wheel distance, small turning radius, easy to turn around in the field.

6.Special cutter table, auger-type picking roller, forceful and quick to pull the corn stick into cutter table, not intertwine, not blocking.

7.Adopt a hydraulic side-dumping device, convenient for corn unloading.

8.Adopt closed, shock-absorbing, and big-sized glass cab, comfortable and clear visibility to drive.

9.Peeling device and grain elevator with an alarm system, first-time to warn the fault information.

10.Adopt a visual image system to monitor grain tank and reversing, convenient, clean, and safe.

11. Reserve a termination to connect the air conditioner or fan.

FAQ:

Q1.How long is the delivery date?

A: In general, we can ship the goods within 15 days after receiving your payment. Of course, it also depends on your quantity.

Q2. How can I visit your factory?

A: We are located in Zhengzhou city, middle of China, Airport&High-speed train, the transportation is very convenient

Q3: What are your main products?

A: Our products are covered rice&wheat combine harvester, corn harvester, and peanut harvester.

Q4. What are your terms of payment?

A: T/T, L/C, Paypal, Western Union

Q 5: How is the quality of the harvester?

A: We are an experienced manufacturer which has been in this field for 30 more years, and can supply high-quality harvesters for you.

After-Sales Service

1. Training how to install and use the machine, engineers available to service machinery overseas.

2. Warranty period of one year since machine arrives destination port. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer. Other malfunctions caused by operation mistakes, man-made problems, etc will be responsible for clients-self.

3. Timely response to customers' problems 7*24 hours provide in-time Feedback tracking and after-sales services to maximize the customer's satisfaction.

Local Service at User's Farm

Services Including:

- Agricultural technology consulting

- Combine harvester usage training

- Agricultural machinery sales services

- Agricultural machinery maintenance services

- Farm technology exchange meetings

- Farmers' private technology exchange meetings

- Agricultural machinery sharing and leasing organizations
