High Quality Lamella Pump for an Abattoir or Meat Process Plant
Jiangsu Stord Works Ltd.- Port：Shanghai, China
- Production Capacity：10pieces/Week
- Payment Terms：L/C, T/T, Western Union, Paypal, Money Gram
- Type：Conveyors
- Condition：New

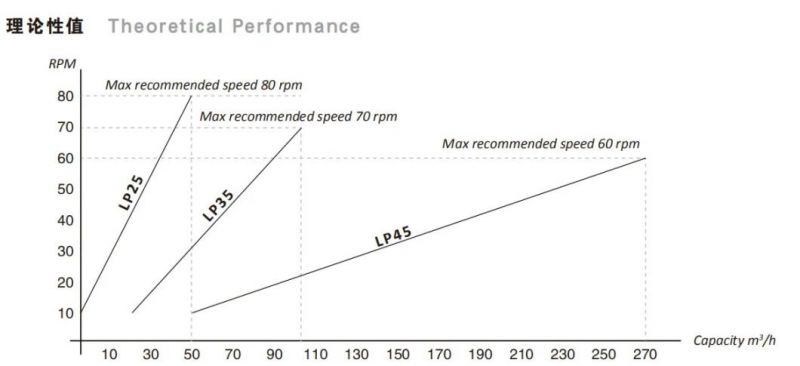

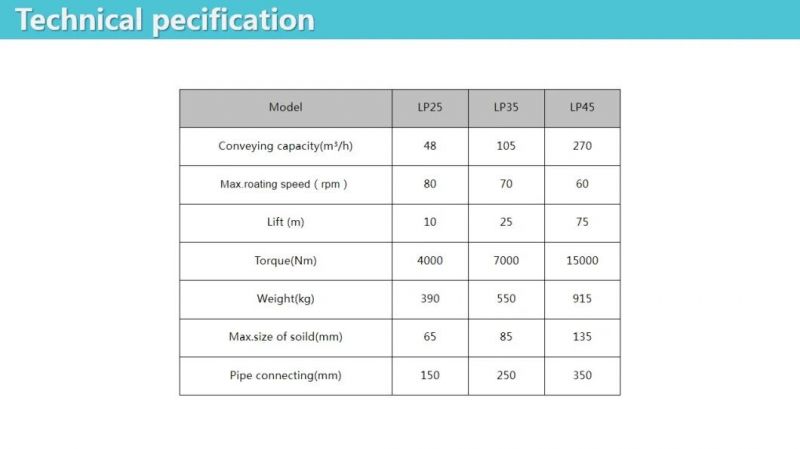

- Conveying Capacity：48 M2/H (105 M2/H,270 M2/H)
- Max. Rotating Speed：80rpm (70 Rpm,60 Rpm)
- Lift：10 M(25m,75m)
- Torque：4000 Nm(7000 Nm,15000 Nm)
Base Info
- Model NO.：LP-35
- Weight：390 Kg (550 Kg,915 Kg)
- Max. Size of Slolid：65mm(85 mm,135 mm)
- Pipe Connection：150mm (250 mm,350 mm)

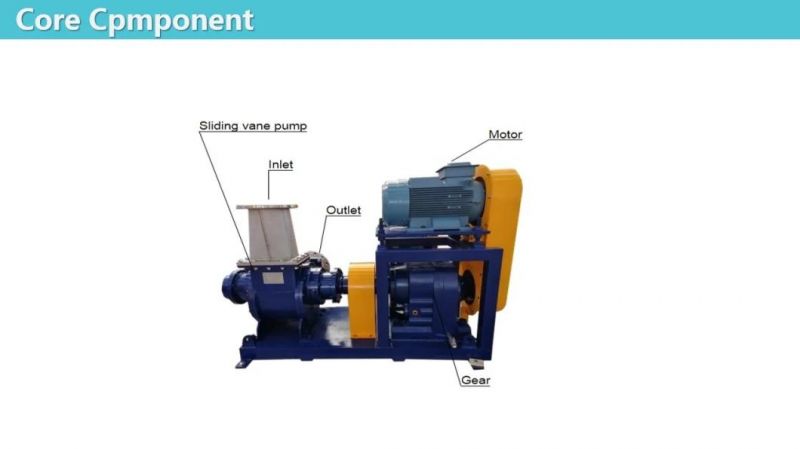

- Core Components：Motor
- Power：30kw-110kw
- Structure：Conveyor System
- Trademark：Stordworks
- Origin：Jiangsu. China
Description

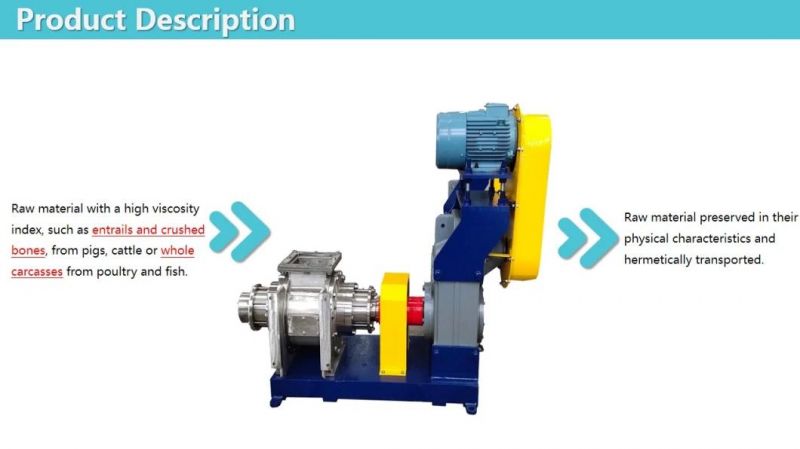

A tough and durable pump that is suitable for pumping large and hard particles such as fish and cut off's and animal by-products.
It is mainly used to convey liquid containing large particles and solid-liquid mixture with high viscosity e.g.pre-broken animal by-product,fish,pet food,etc
Key wearing parts like the rotor, Lamellas, wearing plates, cam discs, top- and bottom plates and wearing bars, can be supplied in tool steel quality stainless steel, with high strength, wear-resistance and excellent corrosion resistance.
Advantages
1.Clean and hermetic transport system;
2.Low energy consumption;
3.Easy maintenance access;
4.Comply with the requirements of the ISO standard.
5.Transport of materials for short and long distances, with a single actuation;
1) Carefully check the quantity and quality of equipment before packing.
2) Good packed by plastic wrap.
3) Fittings and spare parts are packed in wooden pallet .
4) Iron Frame, Suitable for land transport and sea freight.
5) Add labels and shipping mark.
