Professional Fruiter Trees Dry Branch Shredder, Forest Litters Shredder, Bush Shredder, ...
Shijiazhuang Woliu Trading Co., Ltd.- Port：Tianjin, China
- Production Capacity：500 Units /Month
- Payment Terms：T/T
- Type：Branch Crushing Machine
- Power Source：Tractor
- Certification：SGS
- Blade No.：16 PCS
- Application：Crushing Branches, Sticks in Forest , Orchard
- Required Power：50-100 HP Tractor
Base Info
- Model NO.：3ZQ-140
- Transport Package：Standard Wooden Box
- Specification：1700x1600x1000 mm
- Origin：Hebei, China
- HS Code：8436800090
Description

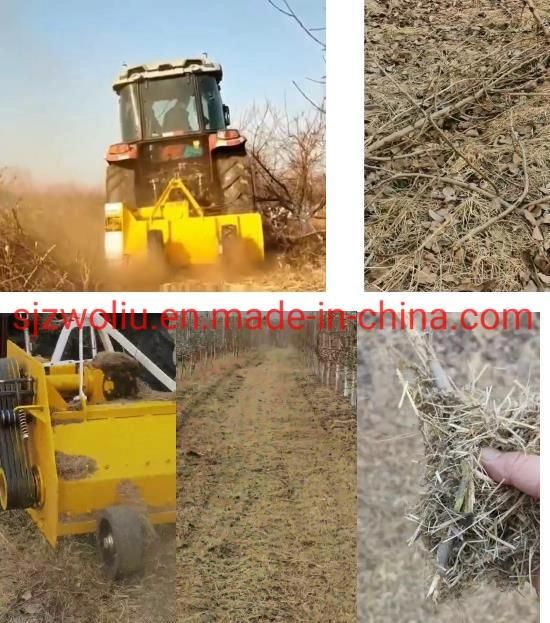

3ZQ series fruiter branches crushing machine should be matched with 50-100hp tractors for working. It not only can be used for crushing fruiter branches , sticks , but also used for crushing bushes , forest litters, and fallen leaves with high working efficiency.
Technical specifications:
Technical specifications:
| Model | 3ZQ-140 |
| Required power (hp) | 50-100 hp |
| Overall size (LxWxh) | 1700x1600x1000 mm |
| Working width (mm) | 1408 mm |
| Swing diameter of feeding shaft (mm) | 470 mm |
| Crushing blade No. (pcs) | 16 pcs |
| Crushing blade type | Hammer claw type |
| Turing speed of input shaft (r/min) | 1770 r/min |
| Spline number of input shaft (pc) | 8 splines ∮38 |
| Working speed (km/hour) | 4-8 km/hour |
| Whole weight (kg) | 670 kg |
