Zoomlion More 1.5m Row Spacing Agriculture Machinery for Harvesting Field
Zoomlion Heavy Industry Science & Technology Co., Ltd.- Min. Order：1 set
- Port：Shanghai, China
- Production Capacity：10000sets/Year
- Payment Terms：L/C, T/T, OA
- Type：Horizontal Cut Harvester
- Application：Sugarcane
- Power Source：Diesel
- Harvest method：Cutting
- Drive Type：Hydrostatic Drive
- Transmission：Mechanical Drive
Base Info
- Model NO.：AC90 Sugarcane harvester
- Certification：ISO9001:2008, CE
- Color：Green
- Condition：New
- Application Field：Agriculture
- Trademark：zoomlion
- Transport Package：SKD
- Specification：40HQ
- Origin：Anhui, China
- HS Code：84335100
Description
AC90 Sugarcane harvester
High performance
Intelligent control
Cozy operation
Reliable
High performance
- Suitable for harvesting sugarcane field of single, double row, over 1.5m row spacing and slope below 10;
- Pure working efficiency surpass 50t/h, good performance for harvesting field with high production and severe sugarcane lodging.
- Powerful driving force; Driving power is 20% larger than other counterparts, good generality;
- 300KW(408hp), Euro III Cummins QSM11 engine with 3 types of engine power control mode is equipped, engine is more powerful. By pressing different buttons to make harvester feasible in different working conditions, which can save lot of oil;
- Conveying path adopts automatic variable-diameter conveying technology, rollers inside can automatically adjust its height according to the feeding quantity to adapt to different sugarcane diameters and feeding volume, which prevents crushing of sugarcane and blocking of conveying path;
- Primary extractor plus the secondary extractor, the cleaning effect of sugarcane impurities is extraordinary. Secondary extractor can further clean sugarcane pieces and with its 360-degree rotation, trash is discharged into wanted direction;
- AC90 sugarcane harvester is equipped with shredder which can directly cut off and smash the sugarcane tops, avoiding them to be harvested;
- Bidirectional spiral rollers, which are independent of each other when it is undulating on the left and right and making sugarcane splitting. They move up and down, back and forth respectively to adapt to the sugarcane with different lodging postures according to the actual status of sugarcane in the field.
Intelligent control
- The system of harvester adopts software control, which can effectively monitor the real-time data from the sensors, achieving malfunction diagnosis intelligently;
- AC90 has the most advanced Basecutter automatic height-adjusting technology that height of basecutter to ground can be intelligently adjusted according to the terrain of sugarcane field harvested, which can reduce basecutter damage and enhance harvesting efficiency;
- By setting the controller, harvester does not work within five minutes, the controller will automatically input the "idle speed" command to engine through the CAN bus, and the engine will enter the idle state to reduce the fuel consumption of the machine;
- Water tank and hydraulic oil tank adopts concentrated heat radiator; Wind speed of radiator fan;
- can achieve automatic adjustment according to the changing of the environment; radiator fan can rotate reversely to automatically clean debris in order to ensure normal operation of the engine.
Cozy operation
- The hydraulic motors of sugarcane harvester can realize one-key operation through the buttons on CAN panel so that the operation is more accurate and comfortable. For example, basecutter feeding system and unloading system;
- Harvester's all transmissions are controlled by hydraulic joystick, and the forward/reverse operation is more comfortable;
- Three cameras installed, harvesting can be observed constantly from monitor;
- Luxury air-conditioned cab, imported conditioner, adjustable seat, driving is more cozy.
Reliable

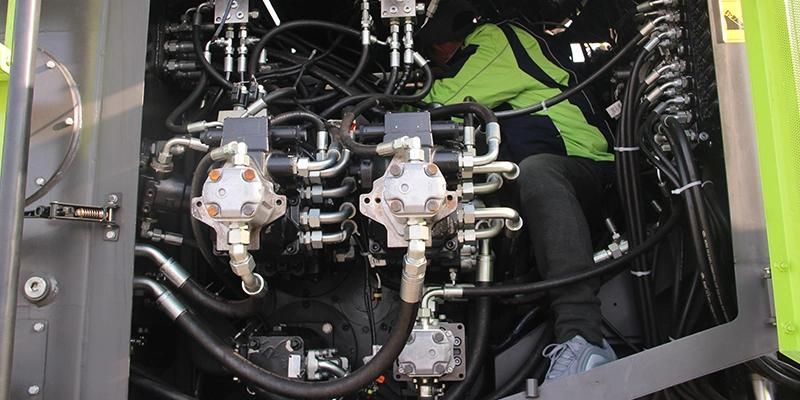

- The load-sensitive hydraulic system can automatically control the flow distribution to meet the dynamic load requirements of the whole machine;
- All electrical components are selected from European and American imported brand suppliers. The connectors are waterproof, dustproof and anti-loose, and the wire harness quality is reliable;
- Large volume of oil tank can supply enough oil for-time harvesting around sugarcane field.
| Model | Unit | AC90 |
| Technical type | / | Cut-off type |
| Driving mode | / | Wheel-type |
| Driving speed | km/h | 0-18 km/h |
| Dimension(L*W*H) | mm | 15000×7900×6050(Max) 10030×3300×4630(Min) |
| Weight | T | 18.5 |
| Harvesting row spacing | mm | ≥1500 |
| Pure working efficiency | t/h | ≥50 |
| Feeding capacity | kg/s | 10 |
| Engine type | / | Cummins QSM11 |
| Rated type | kW | 300 |
| Front tire | / | 14-17.5TL-14PR |
| Rear tire | / | 23.5-25TT-20PR |
| Impurity rate | % | ≤5% |
| Loss rate | % | ≤7% |
