16L Payload Precision Precision Agriculture Farming Uav Drone
SHANDONG UNID INTELLIGENT TECHNOLOGY CO., LTD.- Port：Qingdao, China
- Production Capacity：10000 Unit
- Payment Terms：L/C, T/T, D/P, Western Union, Paypal, Money Gram, Cash
- After-sales Service：24 Hours on Time
- Warranty：One Year Guarantee Time
- Installation：No Installation
- Liquid Contained：Medicine
- Spraying Shape：Full Cone
- Volume：16L~30L
Base Info
- Model NO.：16L UAV DRONE
- Power Supply：Electric
- Technics：Assembly
- Material：Aviation Carbon Fiber and Aviation Aluminum
- Type：Sprayer Drone
- Sprayer Type：Pump
- Usage：Agriculture
- Applicable Industry：Farms, Home Use, Epidemic Prevention
- Feature：Anti-Fall
- Production Material：Aviation Carbon Fiber and Aviation Aluminum
- Production Folding Size：1070mm*1070mm*370mm
- Max Pesticide Load：18kg
- Aircraft Medicine Box Capacity：16L
- Flight Radius：Less Than 5000m
- Max Takeoff Weight：34kg
- Aircraft Weight：11kg
- Flight Attitude：Less Than 30m
- Flight Duration：20-25minutes
- Condition：New
- Warranty Time：12 Months
- Trademark：UNID
- Transport Package：Professional Package Box
- Specification：1 CBM
- Origin：China
- HS Code：8802200090
Description

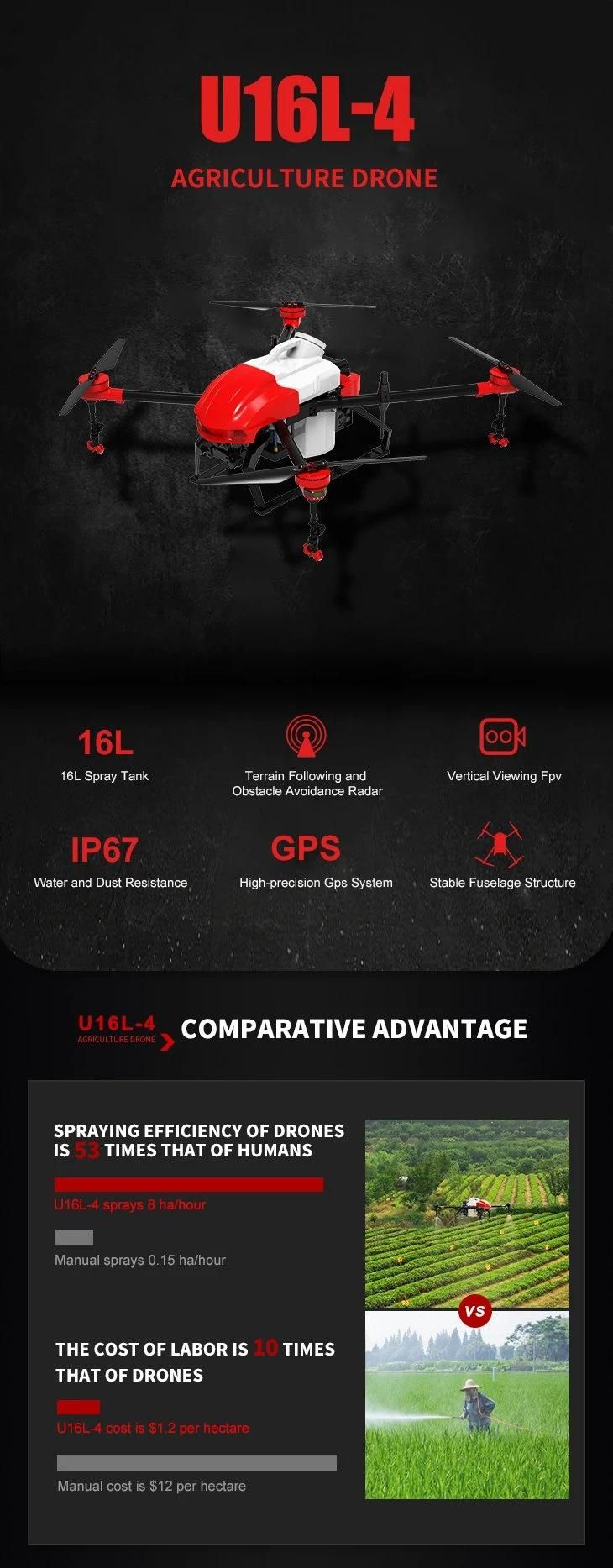

16L payload precision precision agriculture farming uav drone
- OEM & ODM Service - FPV camera
The job is safe as you can see
U16L-4 series plant protectors can clearly present the front scene of plant protectors on the remote control through a 123° wide-angle lens, providing real scene reference for remote obstacle winding flight during operation.
With the help of FPV camera, plant protection aircraft can achieve flight positioning. The pilot can easily set point A/B or navigation point through the real scene image returned by FPV, thus saving the labor required in the past.
Walking or A/B flag bearer, work planning is more time saving and efficient.
| Model | U16L-4 |
| Product material | Aviation carbon fiber + aviation aluminum |
| Product expansion size | 1840mm*1840mm*530mm |
| Product folding size | 740mm*370mm*530mm |
| Packaging size | 900*450*600mm |
| Maximum takeoff weight | 34KG |
| Aircraft weight | 12.4KG |
| Pesticide Barrel | 16L(standard a bucket) |
| Flight altitude | ≤30 meters |
| Fly time(unloaded) | 20~25 minutes |
| Fly time(loaded) | 10~13 minutes when fully loaded |
| Flight speed | 1-10 m / sec |
| Structure lift span | ≥10 years |
| Spray width | 4-8 meters |
| Hovering in the air | Hovering in any direction |
| Spray flow | 3-8L/min double pump adjustable |
| Spray system | Imported high pressure anti-floating atomizing nozzle |
| Atomization point size | 60~90μm |
| Fly control | Industrial Version GPS and Controller |
| Spray efficiency | 5~6hectares/hour |
| Safe takeoff and landing wind speed | ≤5 |
| Motor speed | 5000rpm |
| Power system | 48V power polymer computer battery |
| Charer | AC Input 100-240V |
| Lithium-polymer battery | 16000mAh*1 |
